Coin Cell Holder

Select View: Details Pictures

BRX1-0005

Holder

BK-335-SM

335 Retainer with Surface Mount leads

Also Accepts: SR512SW

Can also fit other smaller cells

Height above PCB: 1.55 mm

Lead-free Solder Process Compatible

BHX1-LR44-PC

A76 Holder with PC pins

Also Accepts: LR44

Height above PCB: 6.30 mm

Lead-free Solder Process Compatible

BHX1-LR44-SM

A76 Holder with Surface Mount leads

Also Accepts: LR44

Height above PCB: 6.32 mm

Lead-free Solder Process Compatible

BH600SM-5.8-G

A76 Holder with Surface Mount leads

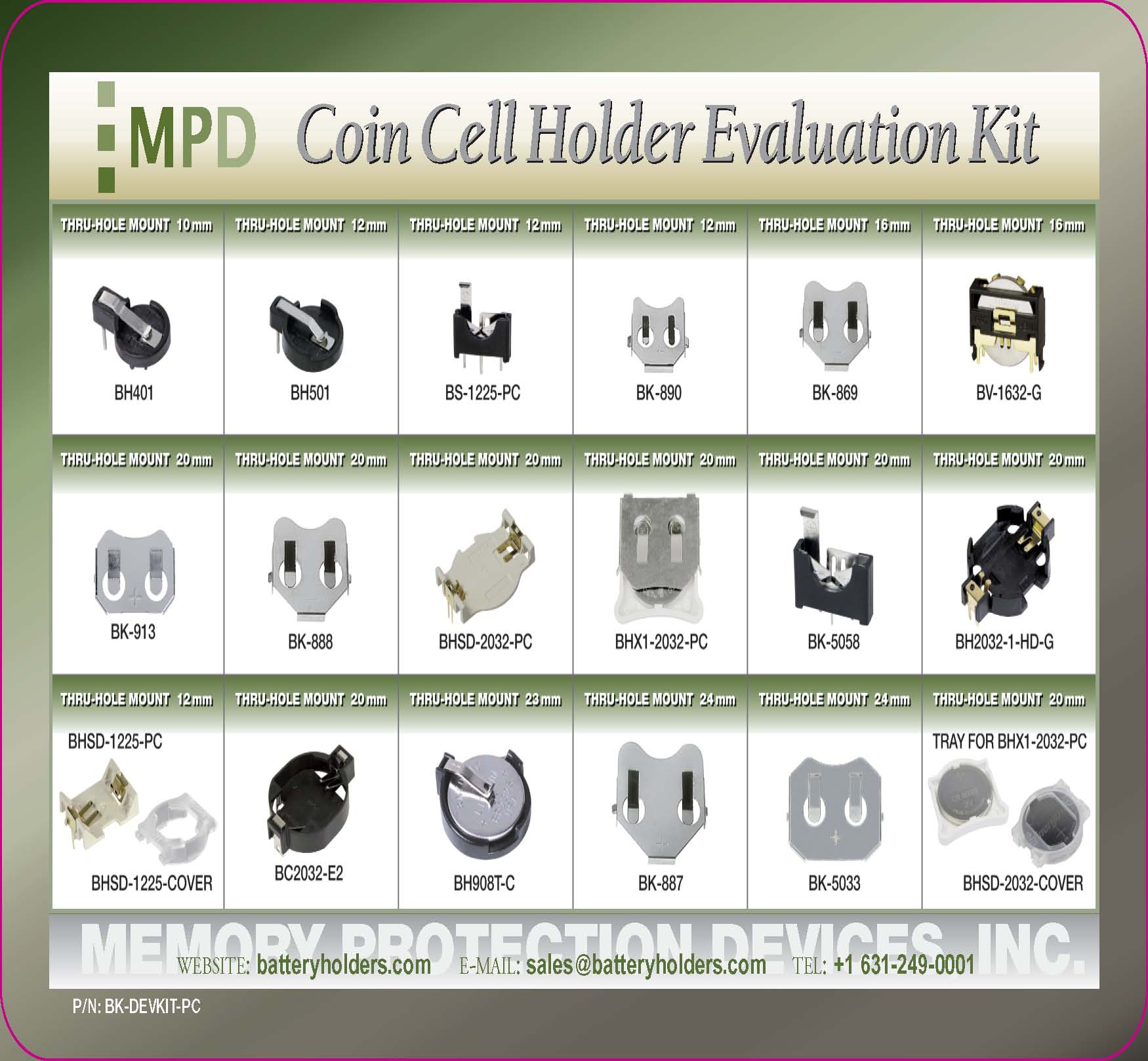

BK-DEVKIT-PC

Coin Cell Holder

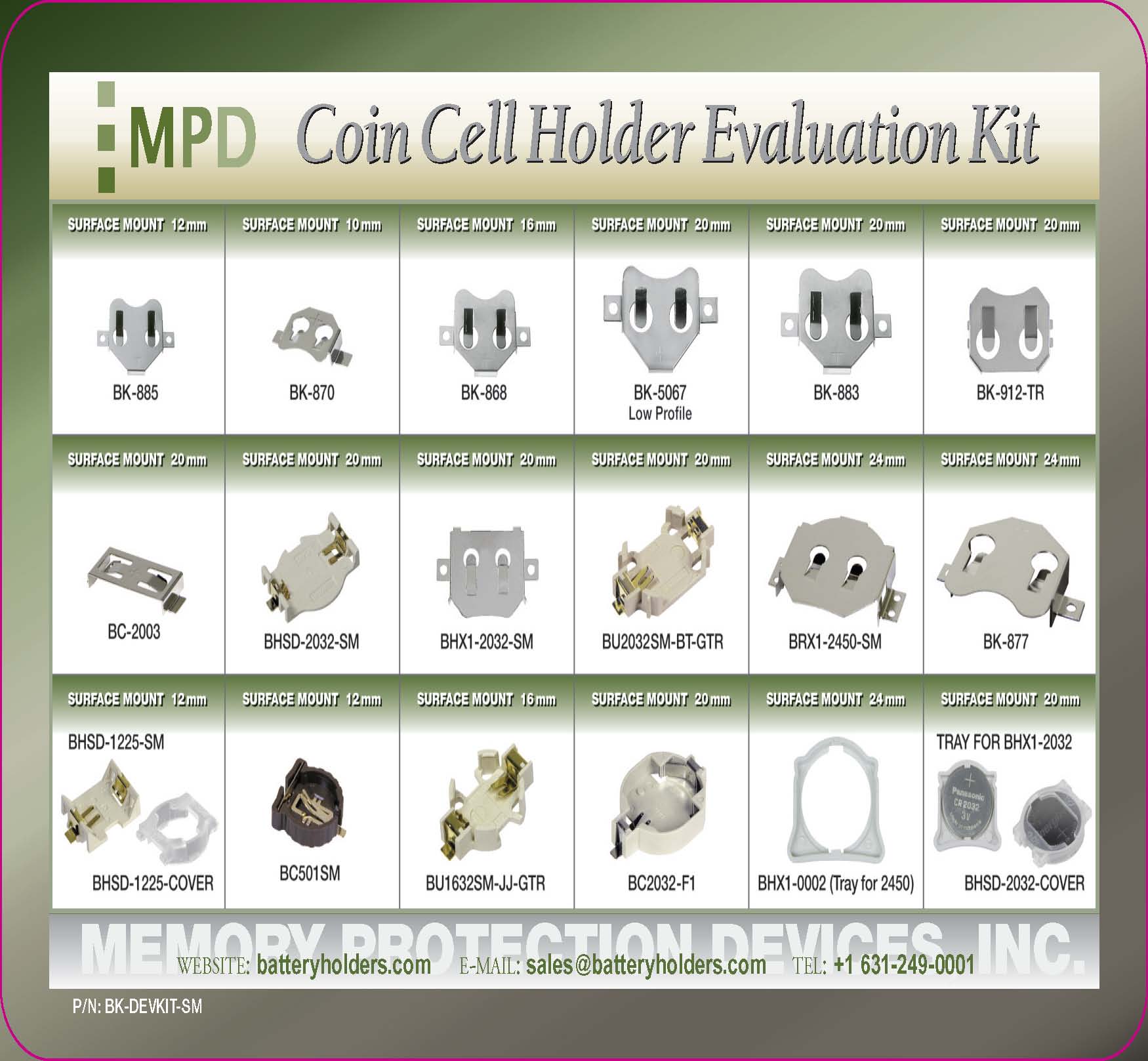

BK-DEVKIT-SM

Coin Cell Holder

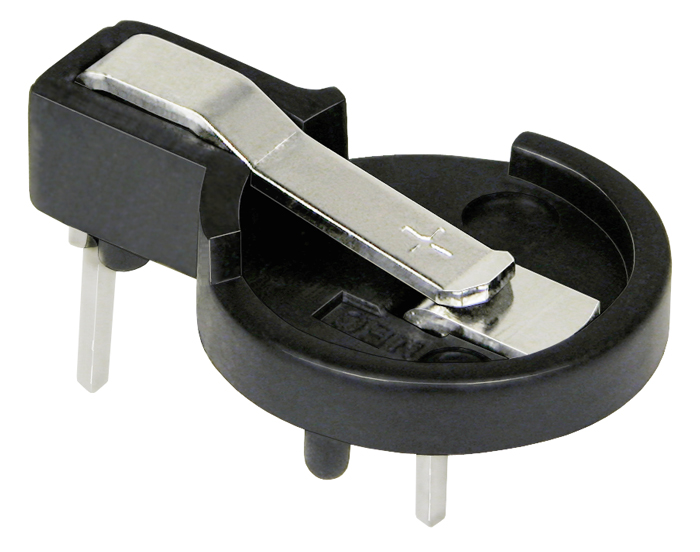

BH401

CR1025 Holder with PC pins

Also Accepts: BR1025

Can also fit other smaller cells

Height above PCB: 6.88 mm

BHX1-1025-PC

CR1025 Holder with PC pins

Also Accepts: BR1025

Height above PCB: 3.60 mm

Lead-free Solder Process Compatible

BHX1-1025-SM

CR1025 Holder with Surface Mount leads

Also Accepts: BR1025

Height above PCB: 3.63 mm

Lead-free Solder Process Compatible

BK-870

CR1025 Retainer with Surface Mount leads

Height above PCB: 3.18 mm

Lead-free Solder Process Compatible

BC-2017

CR1216 Retainer

Lead-free Solder Process Compatible

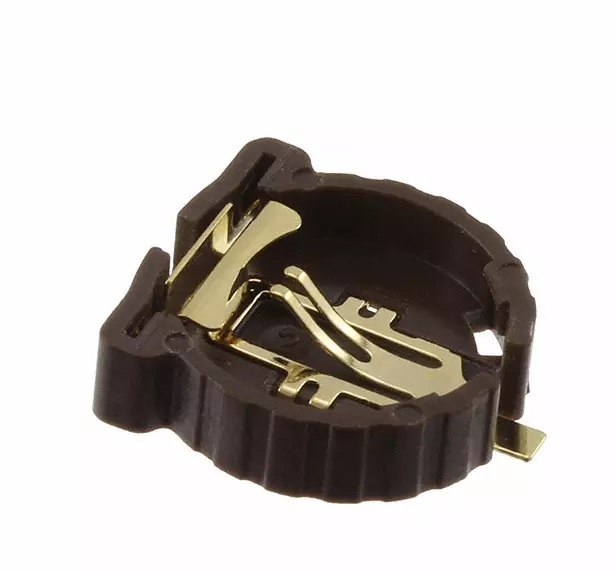

BC501SM

CR1220 Holder with Surface Mount leads

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible

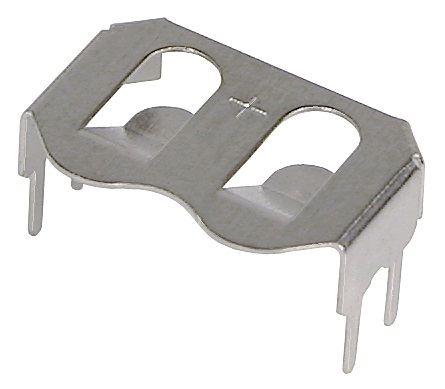

BK-917

CR1220 Holder with PC pins

Also Accepts: CR1216, BR1216, CR1220, BR1220, CR1225, BR1225

Height above PCB: 3.55 mm

BK-940

CR1220 Retainer with Surface Mount leads

Also Accepts: CR1220, BR1220, CR1225, BR1225

Lead-free Solder Process Compatible

BK-941

CR1220 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Lead-free Solder Process Compatible

BC-2009-TR

CR1225 Retainer

Height above PCB: 2.92 mm

Lead-free Solder Process Compatible

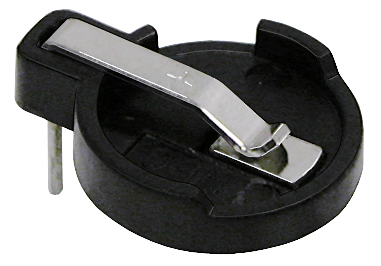

BH501

CR1225 Holder with PC pins

Also Accepts: CR1216, BR1216, CR1220, BR1220, BR1225

Can also fit other smaller cells

Height above PCB: 6.93 mm

BHX1-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Can also fit other smaller cells

Height above PCB: 3.55 mm

Lead-free Solder Process Compatible

BHX1-1225-SM

CR1225 Holder with Surface Mount leads

Also Accepts: BR1225

Height above PCB: 3.55 mm

Lead-free Solder Process Compatible

BK-885

CR1225 Retainer with Surface Mount leads

Also Accepts: CR1216, BR1216, CR1220, BR1220, BR1225

Can also fit other smaller cells

Height above PCB: 3.17 mm

Lead-free Solder Process Compatible

BK-890

CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, BR1225

Height above PCB: 3.00 mm

Lead-free Solder Process Compatible

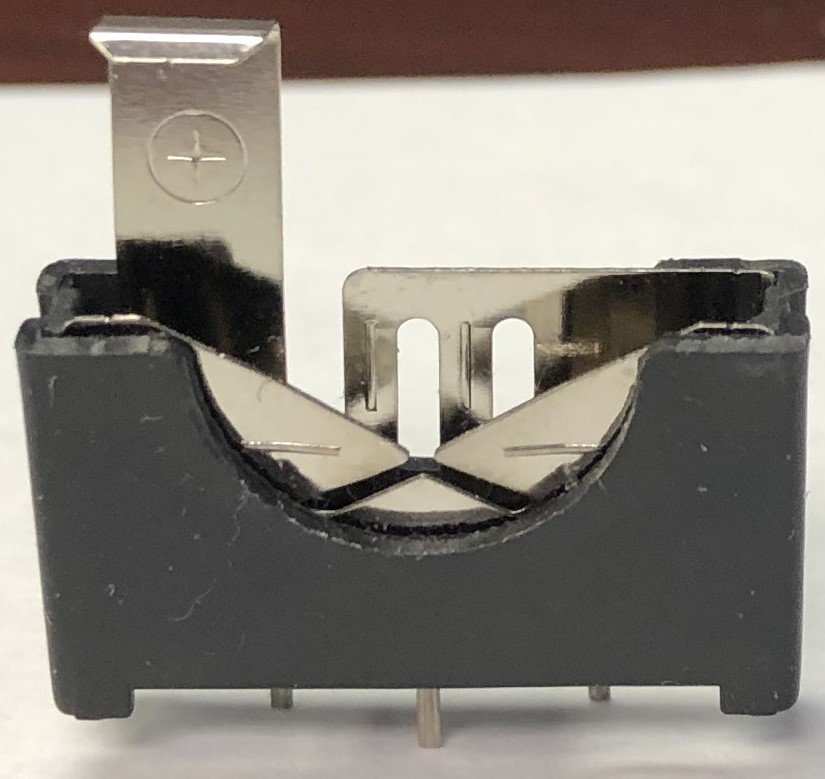

BS-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Height above PCB: 14.0 mm

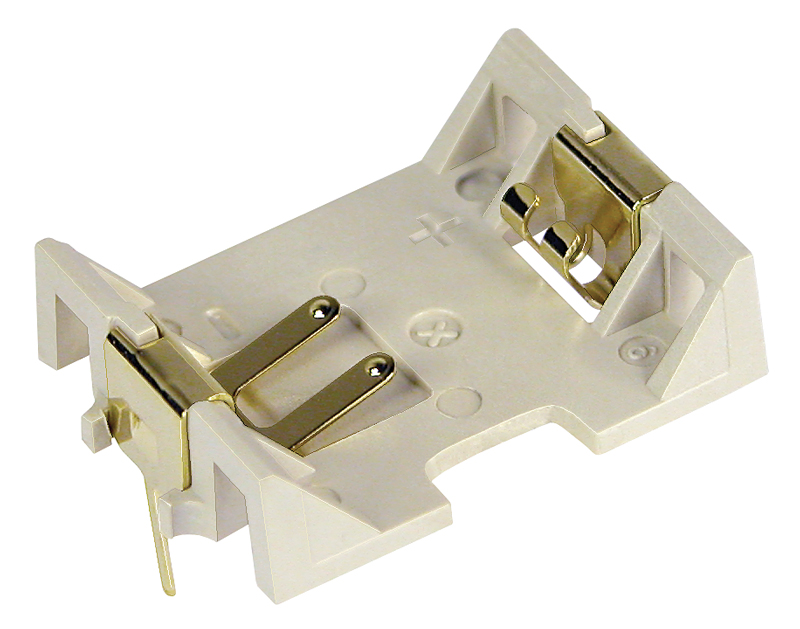

BHSD-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Height above PCB: 4.83 mm

Lead-free Solder Process Compatible

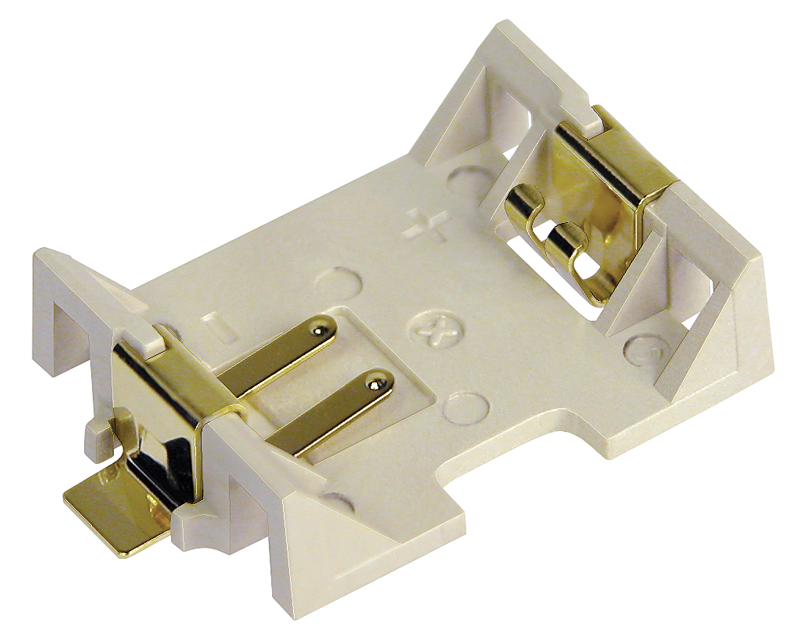

BHSD-1225-SM

CR1225 Holder with Surface Mount leads

Also Accepts: BR1225

Height above PCB: 4.83 mm

Lead-free Solder Process Compatible

BC-2011

CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Can also fit other smaller cells

Height above PCB: 2.67 mm

Lead-free Solder Process Compatible

BC-2009

CR1225 Retainer with Surface Mount leads

Also Accepts: BR1225

Can also fit other smaller cells

Height above PCB: 2.92 mm

Lead-free Solder Process Compatible

BK-916-TR

CR1225 Retainer with Surface Mount leads

Also Accepts: CR1216, BR1216, CR1220, BR1220, CR1225, BR1225

Can also fit other smaller cells

Height above PCB: 3.6 mm

Lead-free Solder Process Compatible

BHX1-1620-PC

CR1620 Holder with PC pins

Also Accepts: BR1620

Height above PCB: 3.43 mm

Lead-free Solder Process Compatible

BHX1-1620-SM

CR1620 Holder with Surface Mount leads

Also Accepts: BR1620

Height above PCB: 3.51 mm

Lead-free Solder Process Compatible

BK-960

CR1620 Retainer with Surface Mount leads

Also Accepts: BR1620

Lead-free Solder Process Compatible

BK-961

CR1620 Retainer with PC pins

Lead-free Solder Process Compatible

BH600

CR1632 Holder with PC pins

Also Accepts: CR1620, BR1620, BR1632, F3 iButton

Can also fit other smaller cells

BH600-G

CR1632 Holder with PC pins

Also Accepts: CR1620, BR1620, BR1632, F3 iButton

Can also fit other smaller cells

Height above PCB: 8.26 mm

BHX1-1632-PC

CR1632 Holder with PC pins

Also Accepts: BR1632

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible

BHX1-1632-SM

CR1632 Holder with Surface Mount leads

Also Accepts: 2 CR1616 , 2 CR1616 , BR1632

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BK-868

CR1632 Retainer with Surface Mount leads

Also Accepts: BR1632, F3 iButton

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible

BK-869

CR1632 Retainer with PC pins

Also Accepts: BR1632, F3 iButton

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible

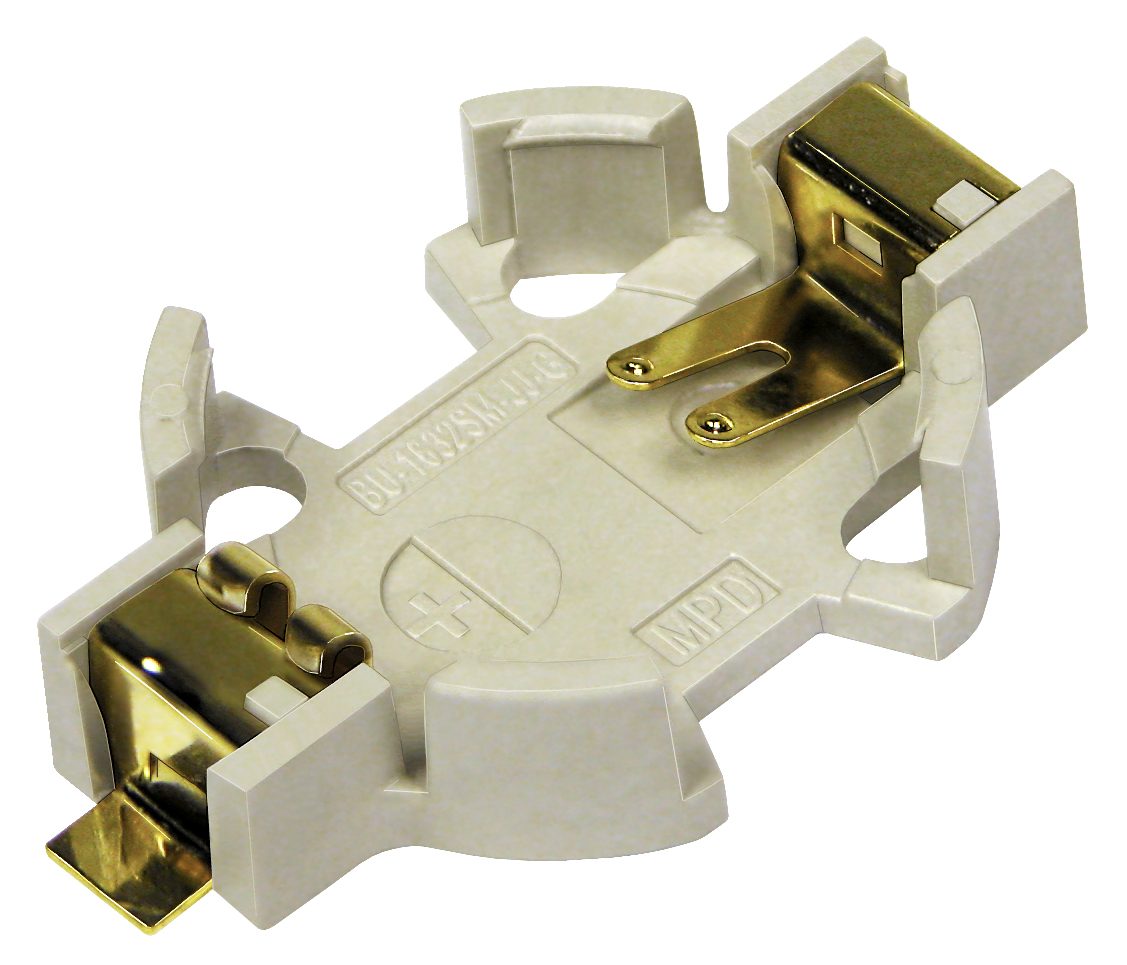

BU1632SM-JJ-GTR

CR1632 Holder with Surface Mount leads

Height above PCB: 5.30 mm

Lead-free Solder Process Compatible

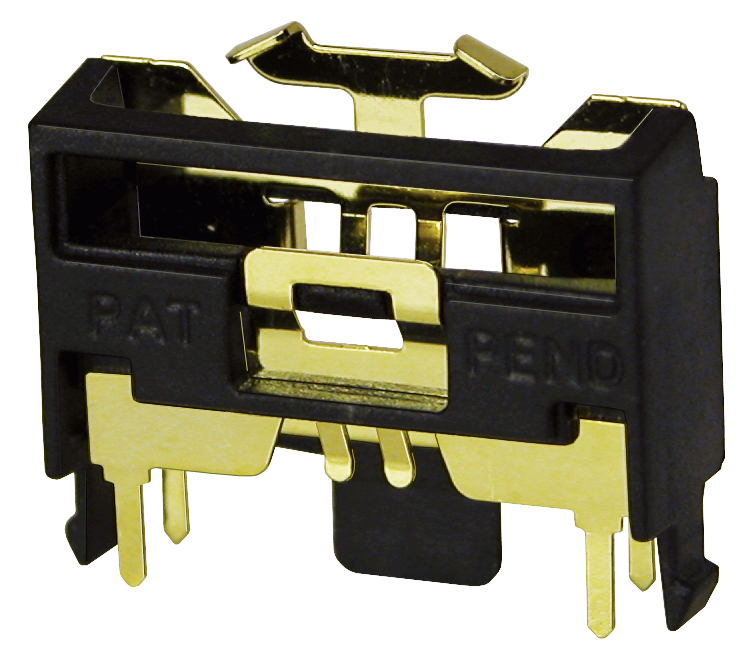

BV-1632-G

CR1632 Holder with PC pins

Also Accepts: BR1632

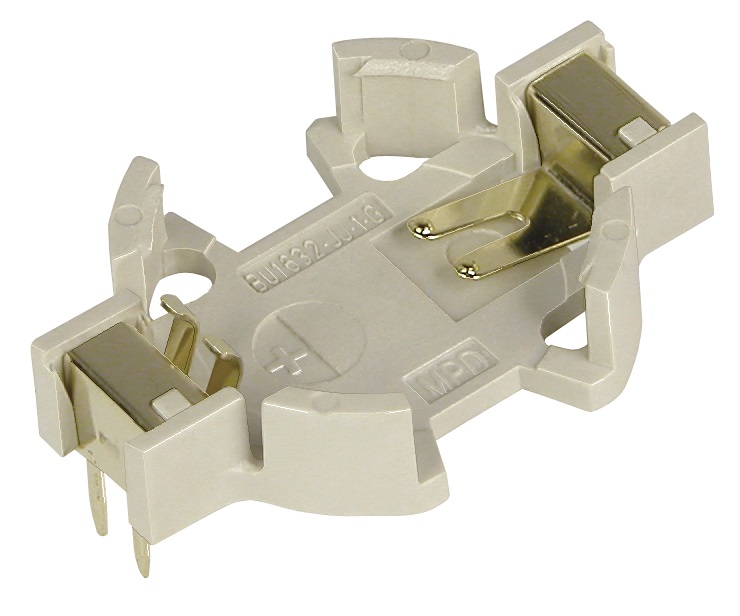

BU1632-JJ-1-G

CR1632 Holder with PC pins

Also Accepts: DL1632

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BRX1-1632-SM

CR1632 Holder

BK-5067

CR2016 Retainer with Surface Mount leads

Also Accepts: BR2016

Can also fit other smaller cells

Height above PCB: 2.16 mm

Lead-free Solder Process Compatible

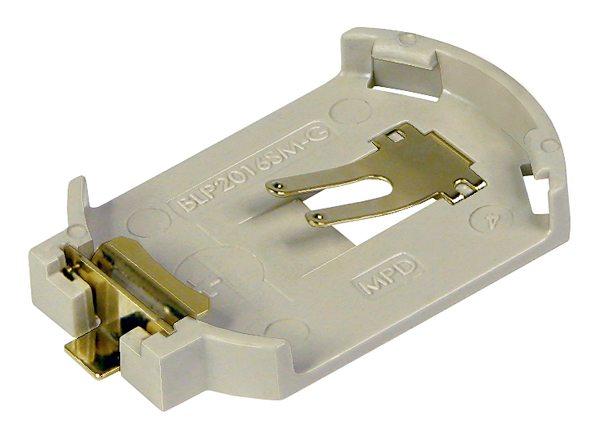

BLP2016SM-GTR

CR2016 Holder with Surface Mount leads

Height above PCB: 3.1 mm

Lead-free Solder Process Compatible

BC-2018-TR

CR2025 Retainer

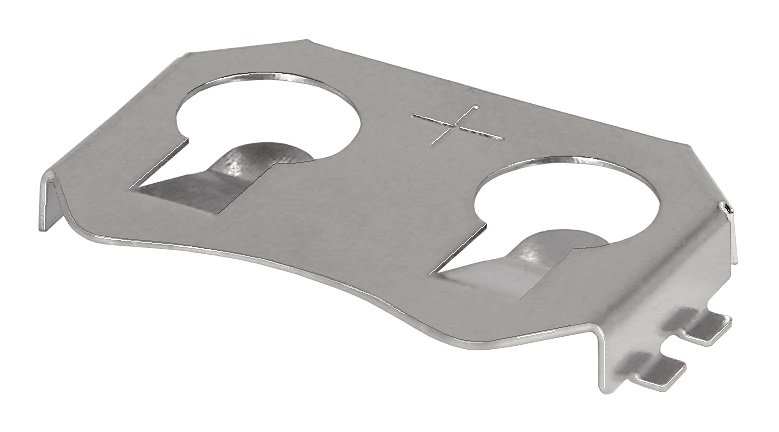

BK-6219-TR

CR2025 Holder

BA2032

CR2032 Holder with PC pins

Height above PCB: 6.70 mm

BA2032SM

CR2032 Holder with Surface Mount leads

Height above PCB: 6.7 mm

BC2032-E2

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 5.08 mm

BC2032-F1

CR2032 Holder with Surface Mount leads

Also Accepts: BR2032

Height above PCB: 5.38 mm

Lead-free Solder Process Compatible

BH32T-C

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 7.18 mm

BH32T-C-G

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 7.18 mm

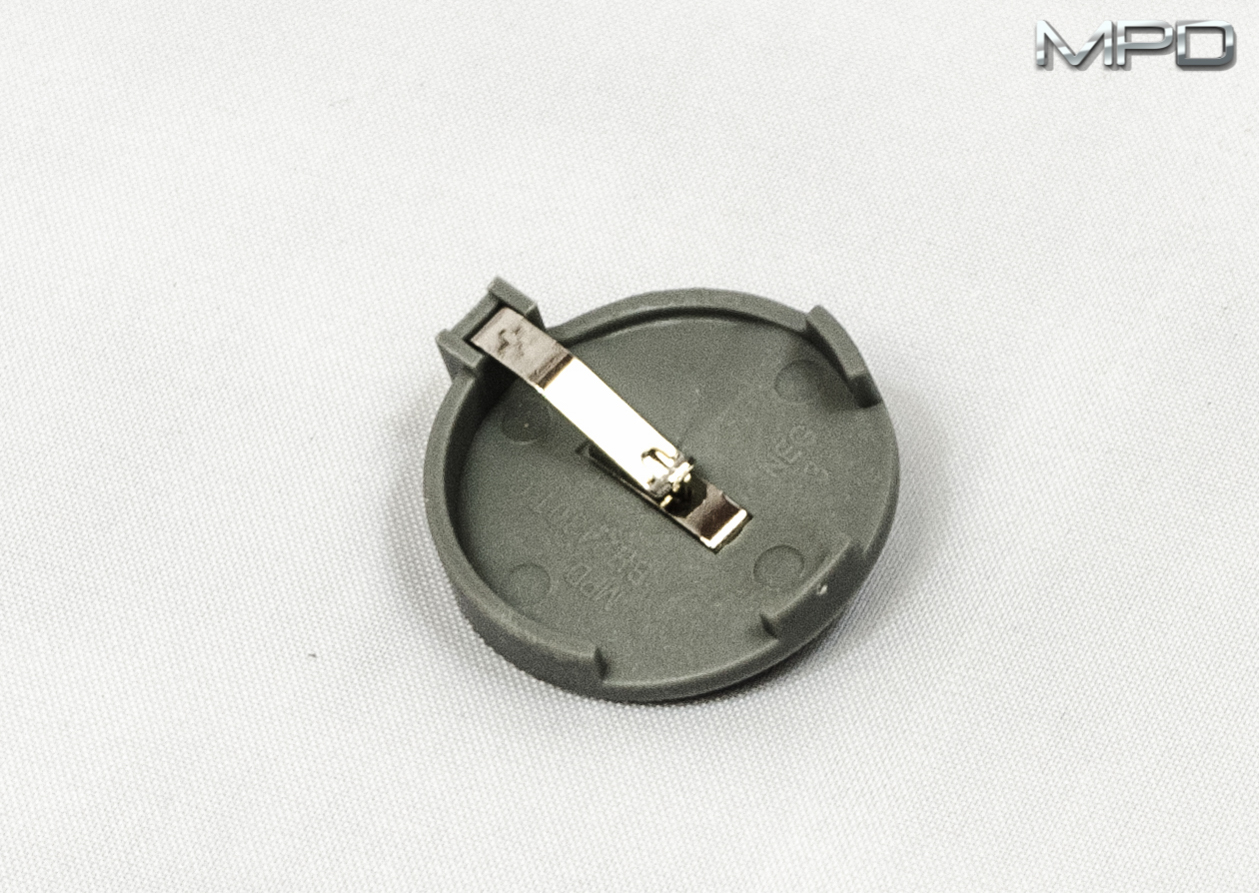

BH32T-C-HITE

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHSD-2032-PC

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 4.75 mm

Lead-free Solder Process Compatible

BHSD-2032-SM

CR2032 Holder with Surface Mount leads

Also Accepts: BR2032

Height above PCB: 4.75 mm

Lead-free Solder Process Compatible

BHX1-2032-PC

CR2032 Holder with PC pins

Also Accepts: 2 BR2016, 2 CR2016, BR2032

Height above PCB: 4.16 mm

Lead-free Solder Process Compatible

BHX1-2032-SM

CR2032 Holder with Surface Mount leads

Also Accepts: 2 BR2016, 2 CR2016, BR2032

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BK-5058

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 20.45 mm

BK-883

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 3.96 mm

Lead-free Solder Process Compatible

BK-888

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

BK-912

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BK-913

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 4.27 mm

Lead-free Solder Process Compatible

BS-3

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 8.95 mm

BS-5

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 17.8 mm

BS-7

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BS-7-BLUE

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BS-7-RED

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BU2032-1

CR2032 Holder with PC pins

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032-1-G

CR2032 Holder with PC pins

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032-1-HD-G

CR2032 Holder with PC pins

Height above PCB: 5.3 mm

BU2032SM-BT-GTR

CR2032 Holder with Surface Mount leads

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032SM-G

CR2032 Holder with Surface Mount leads

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032SM-HD-G

CR2032 Holder with Surface Mount leads

Height above PCB: 5.3 mm

Lead-free Solder Process Compatible

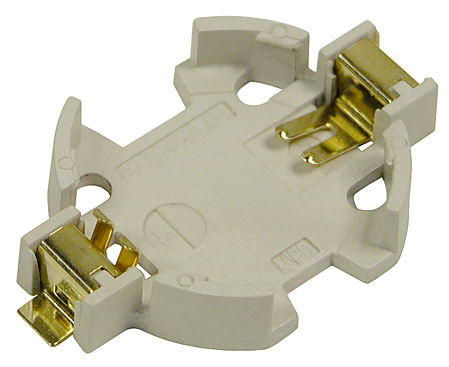

BU2032SM-JJ-GTR

CR2032 Holder with Surface Mount leads

Height above PCB: 5.3 mm

Lead-free Solder Process Compatible

BU2032SM-JJ-MINI-GTR

CR2032 Holder with Surface Mount leads

Height above PCB: 1.95 mm

Lead-free Solder Process Compatible

BH-20H-1T

CR2032 Holder with Surface Mount leads

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BK-5058-4MM

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 20.45 mm

BC-2003

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible

BHSD-2032-L

CR2032 Holder

Also Accepts: BR2032

Height above PCB: 4.75 mm

Lead-free Solder Process Compatible

LP2032SM-JJ-GTR

CR2032 Holder with Surface Mount leads

Height above PCB: 4.7 mm

Lead-free Solder Process Compatible

BC-2400

CR2032 Retainer with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 3.86 mm

BLP2032SM-GTR

CR2032 Holder with Surface Mount leads

Also Accepts: BR2032

Height above PCB: 4.75 mm

Lead-free Solder Process Compatible

BK-912-G

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BK-912-G-TR

CR2032 Retainer with Surface Mount leads

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BVSD-2032-PC

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 28.19 mm

Lead-free Solder Process Compatible

BVSD-2032-COVER

CR2032 Holder

Also Accepts: BR2032

BRX1-0003

CR2032 Holder

BRX1-2032-SM

CR2032 Holder

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BK-915

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible

BQ2032-6

CR2032 Holder

Also Accepts: BR2032

BQ2032-3

CR2032 Holder

Also Accepts: BR2032

BC-2003-2-TR

CR2032 Retainer with Surface Mount leads

Also Accepts: CR2025, BR2025, BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible

BC-2600

CR2032 Holder with Surface Mount leads

Also Accepts: CR2025, BR2025, BR2032

Lead-free Solder Process Compatible

BU2032SM-FH-GTR

CR2032 Holder

Also Accepts: BR2032

Lead-free Solder Process Compatible

BK-5058-SM

CR2032 Holder

Also Accepts: BR2032

Lead-free Solder Process Compatible

BC-2003-G

CR2032 Retainer

Also Accepts: CR2025, BR2025, BR2032

Lead-free Solder Process Compatible

BK-888-G

CR2032 Retainer with PC pins

Also Accepts: CR2016,CR2025,CR2032

BK-913-5-TR

CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible

BC-2400-5-TR

CR2032 Retainer

BK-920

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Lead-free Solder Process Compatible

BK-921

CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible

BC-2003-FH-TR

CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Lead-free Solder Process Compatible

BRX1-2032-PC

CR2032 Holder with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible

BK-912-FH-4-TR

CR2032 Retainer with Surface Mount leads

Also Accepts: CR2025, BR2025, BR2032

Lead-free Solder Process Compatible

BH800S

2 CR2032 Holder with PC pins

Also Accepts: 2 BR2032

Can also fit other smaller cells

Height above PCB: 11.42 mm

BHX2-2032-PC

2 CR2032 Holder with PC pins

Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032

Height above PCB: 7.4 mm

Lead-free Solder Process Compatible

BHX2-2032-SM

2 CR2032 Holder with Surface Mount leads

Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032

Height above PCB: 7.5 mm

Lead-free Solder Process Compatible

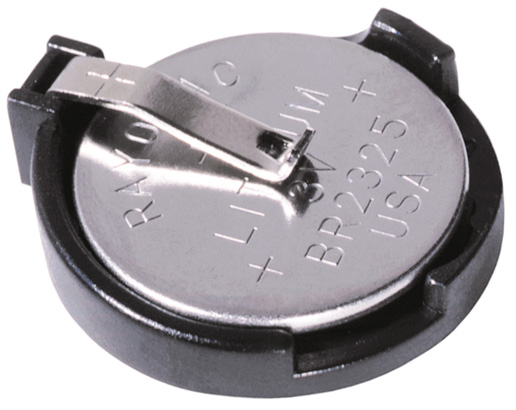

BH908T-C

CR2325 Holder with PC pins

Also Accepts: CR2320, BR2320, BR2325, CR2330, BR2330, CR2335, BR2335

Can also fit other smaller cells

BH908T-C-HITE

CR2325 Holder with PC pins

Also Accepts: CR2320, BR2320, BR2325, CR2330, BR2330, CR2335, BR2335

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHX1-2325-PC

CR2325 Holder with PC pins

Also Accepts: BR2325

Height above PCB: 3.58 mm

Lead-free Solder Process Compatible

BHX1-2325-SM

CR2325 Holder with Surface Mount leads

Also Accepts: BR2325

Height above PCB: 3.51 mm

Lead-free Solder Process Compatible

BK-884

CR2330 Retainer with Surface Mount leads

Also Accepts: CR2320, BR2320, CR2325, BR2325, BR2330

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible

BK-889

CR2330 Retainer with PC pins

Also Accepts: CR2320, BR2320, CR2325, BR2325, BR2330

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

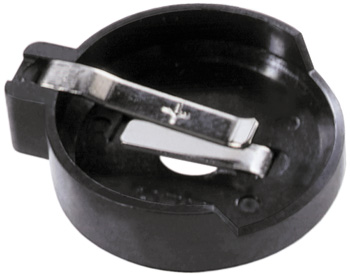

BH906S

CR2354 Holder with PC pins

Also Accepts: 2 CR2320, 2 CR2325

BK-878

CR2354 Retainer with Surface Mount leads

Height above PCB: 6.10 mm

Lead-free Solder Process Compatible

BK-881

CR2354 Retainer with PC pins

Height above PCB: 6.10 mm

Lead-free Solder Process Compatible

BRX1-7500-TR

CR2425 Holder with Surface Mount leads

Lead-free Solder Process Compatible

BC-2013

CR2430 Retainer

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

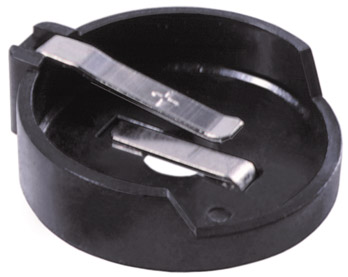

BH1000S

CR2430 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 10.91 mm

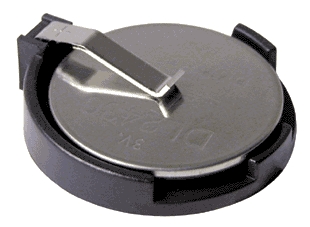

BH2430T-C

CR2430 Holder with PC pins

Also Accepts: CR2420, BR2420, BR2430

Can also fit other smaller cells

BH2430T-C-HITE

CR2430 Holder with PC pins

Also Accepts: CR2420, BR2420, BR2430

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHX1-2430-PC

CR2430 Holder with PC pins

Also Accepts: BR2430

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible

BHX1-2430-SM

CR2430 Holder with Surface Mount leads

Also Accepts: BR2430

Height above PCB: 4.18 mm

Lead-free Solder Process Compatible

BK-886

CR2430 Retainer with Surface Mount leads

Height above PCB: 3.96 mm

Lead-free Solder Process Compatible

BK-887

CR2430 Retainer with PC pins

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

BC-2015

CR2430 Retainer

Lead-free Solder Process Compatible

BHX1-2450-PC

CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 5.87 mm

Lead-free Solder Process Compatible

BHX1-2450-SM

CR2450 Holder with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.92 mm

Lead-free Solder Process Compatible

BK-5033

CR2450 Retainer with PC pins

Height above PCB: 6.60 mm

Lead-free Solder Process Compatible

BK-877

CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

BK-880

CR2450 Retainer with PC pins

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

BS-2450

CR2450 Holder with PC pins

Height above PCB: 9.90 mm

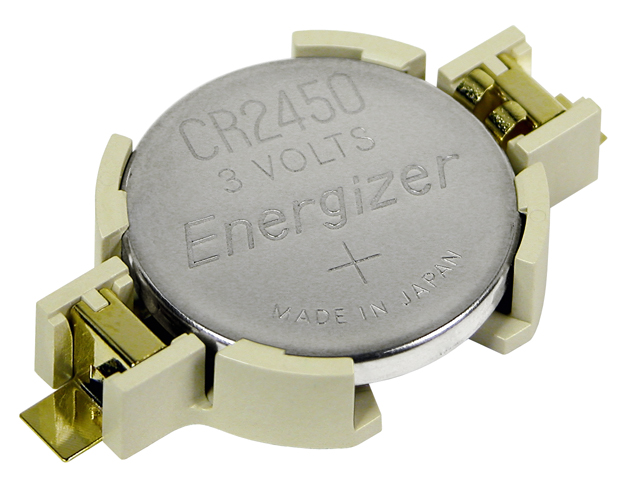

BU2450SM-JJ-GTR

CR2450 Holder with Surface Mount leads

Height above PCB: 7.00 mm

Lead-free Solder Process Compatible

BRX1-2450-SM

CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.90 mm

Lead-free Solder Process Compatible

BRX1-0002

CR2450 Retainer

Also Accepts: BR2450

BC-2007

CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.33 mm

Lead-free Solder Process Compatible

BC-2005

CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

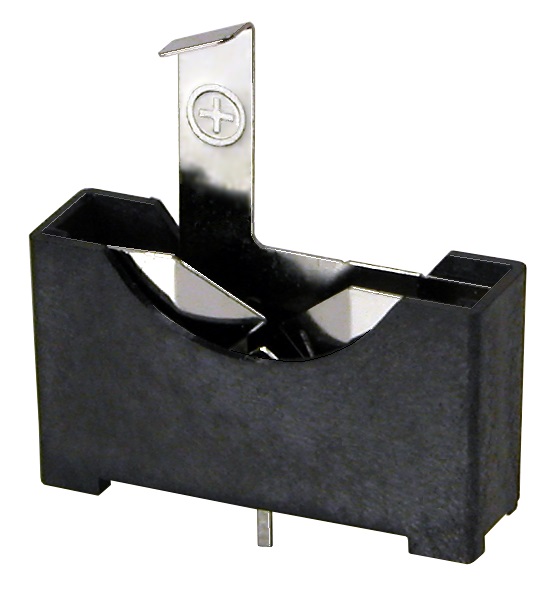

BV-2450-PC

CR2450 Holder

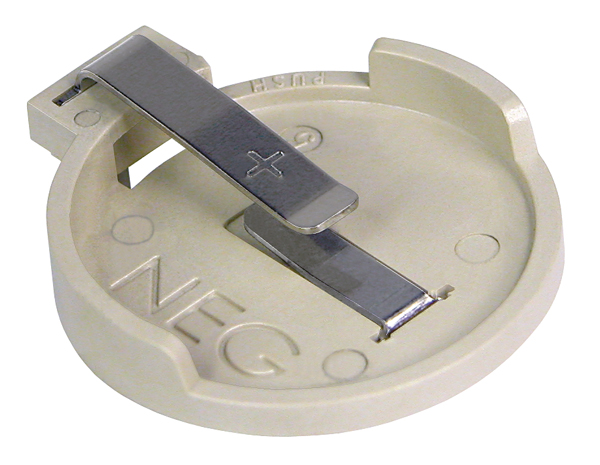

BH2450T-C

CR2450 Holder

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 7.55 mm

Lead-free Solder Process Compatible

BK-877-G

CR2450 Retainer

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible

BK-950

CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible

BK-951

CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible

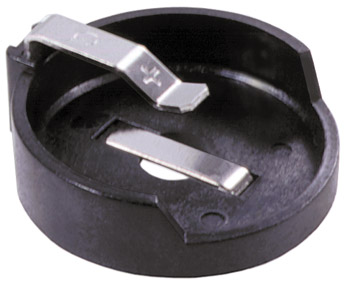

BH1000G

CR2477 Holder with PC pins

Also Accepts: BR2477

Can also fit other smaller cells

BRX1-2477-SM

CR2477 Retainer with Surface Mount leads

Also Accepts: BR2477

Height above PCB: 8.70 mm

Lead-free Solder Process Compatible

BRX1-0001

CR2477 Retainer

Also Accepts: BR2477

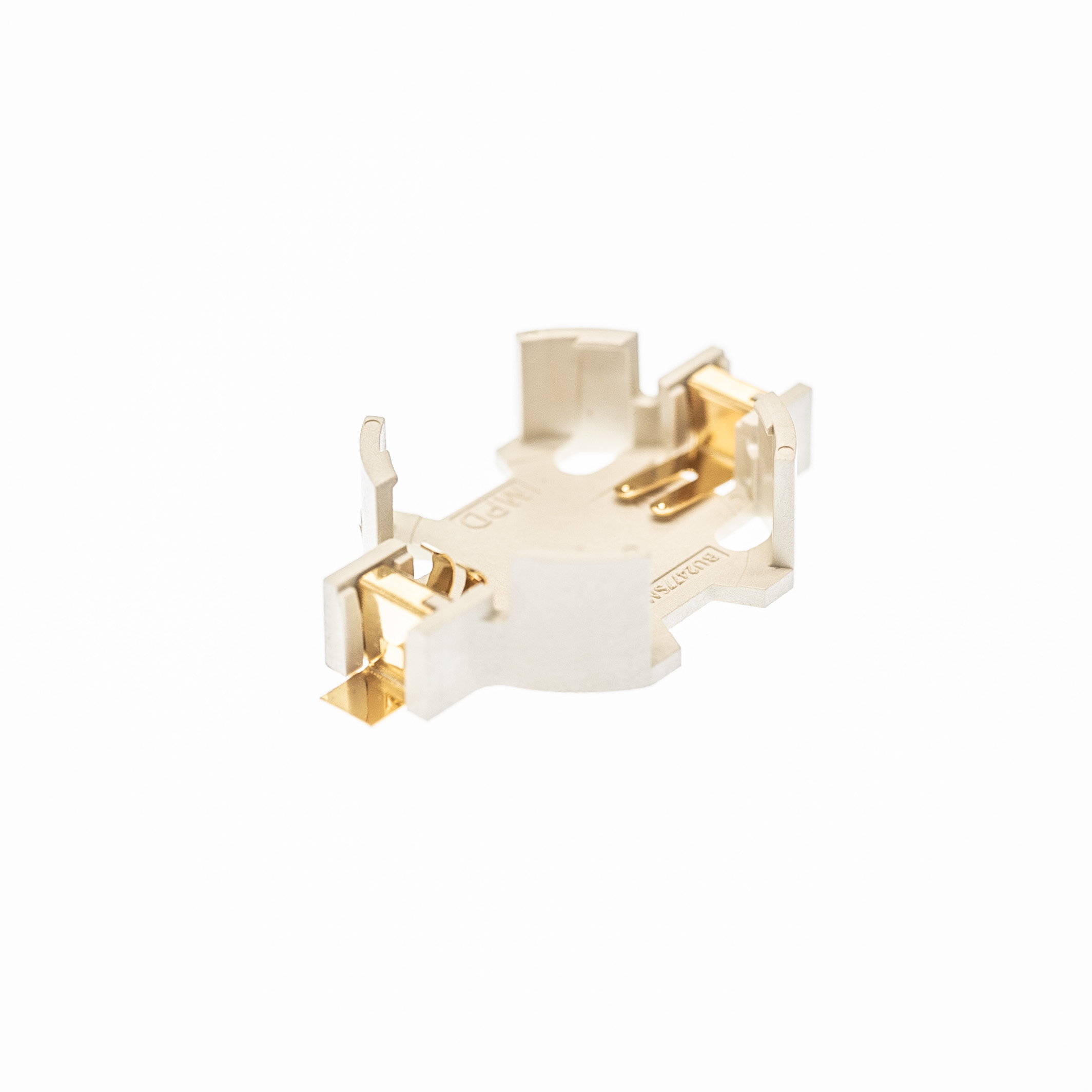

BU2477SM-JJ-GTR

CR2477 Holder with Surface Mount leads

Lead-free Solder Process Compatible

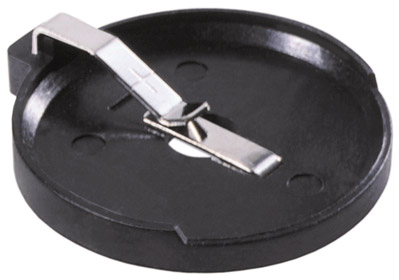

BH3000

CR3032 Holder with PC pins

Also Accepts: BR3032

Can also fit other smaller cells

Height above PCB: 4.32 mm

BHX1-F3-SM

F3 iButton Holder with Surface Mount leads

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible

BH600-5.8

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

BH600-5.8-G

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

BHX1-5.8-PC

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

Height above PCB: 7.47 mm

Lead-free Solder Process Compatible

BHX1-5.8-SM

F5 iButton Holder with Surface Mount leads

Also Accepts: V80H or CP1654

Height above PCB: 7.47 mm

Lead-free Solder Process Compatible

BK-5009

F5 iButton Retainer with Surface Mount leads

Also Accepts: V80H or CP1654

Lead-free Solder Process Compatible

BK-5010

F5 iButton Retainer with PC pins

Also Accepts: V80H or CP1654

Lead-free Solder Process Compatible

BK-1120-SM-TR

LR1120 Retainer with Surface Mount leads

Also Accepts: 191

Can also fit other smaller cells

Height above PCB: 3.17 mm

Lead-free Solder Process Compatible

BK-5091

LR44 Retainer with PC pins

Height above PCB: 5.50 mm

Lead-free Solder Process Compatible

BK-414-TR

ML414 Retainer with Surface Mount leads

Can also fit other smaller cells

Height above PCB: 2.16 mm

Lead-free Solder Process Compatible

BK-879

SR60 Retainer with Surface Mount leads

Can also fit other smaller cells

Height above PCB: 2.79 mm

Lead-free Solder Process Compatible
